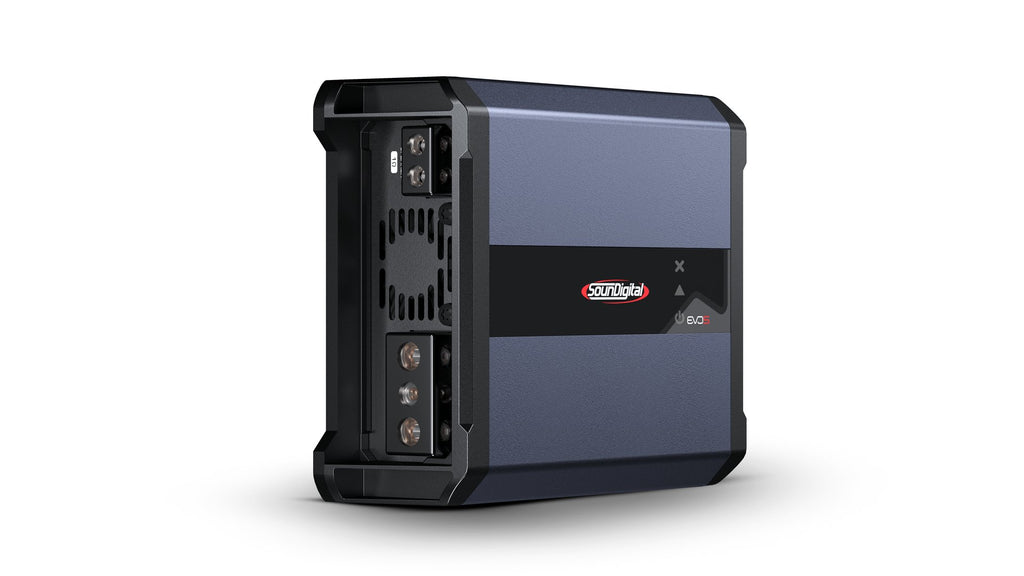

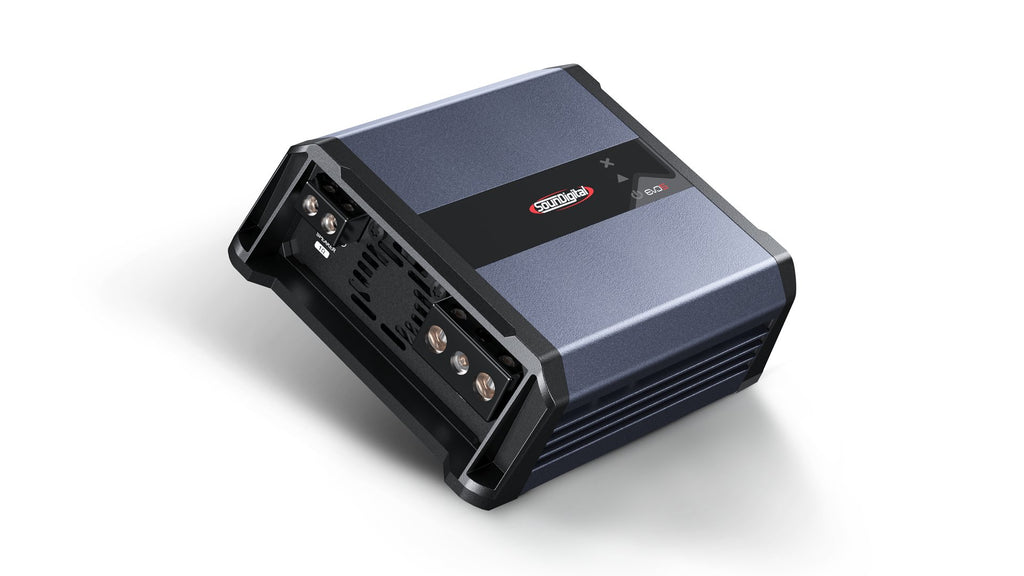

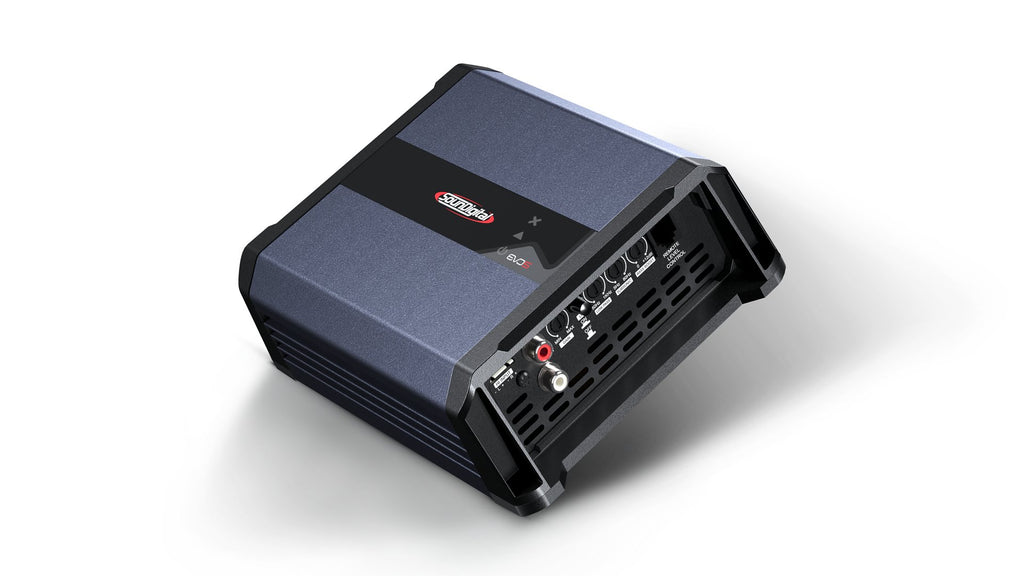

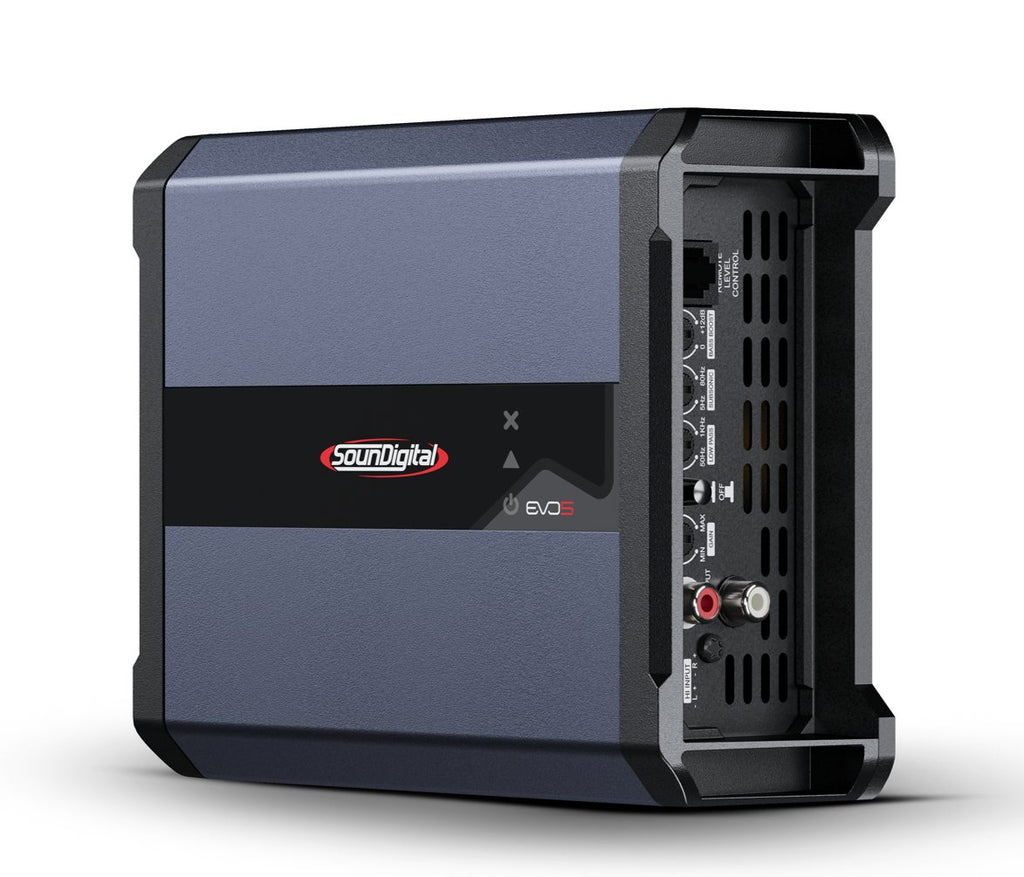

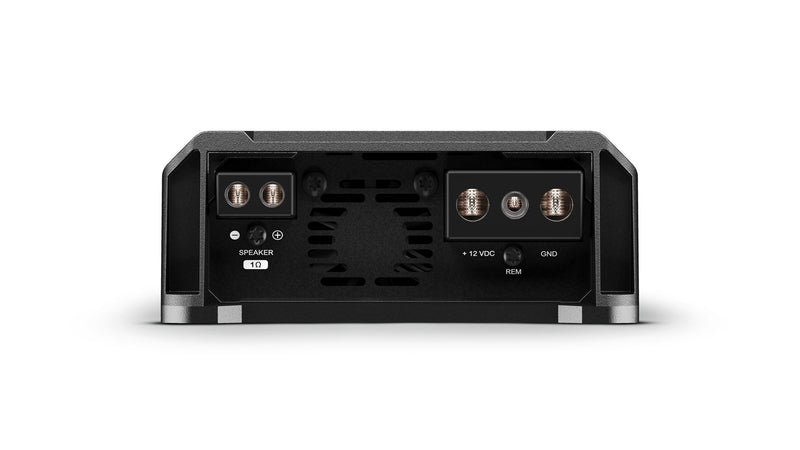

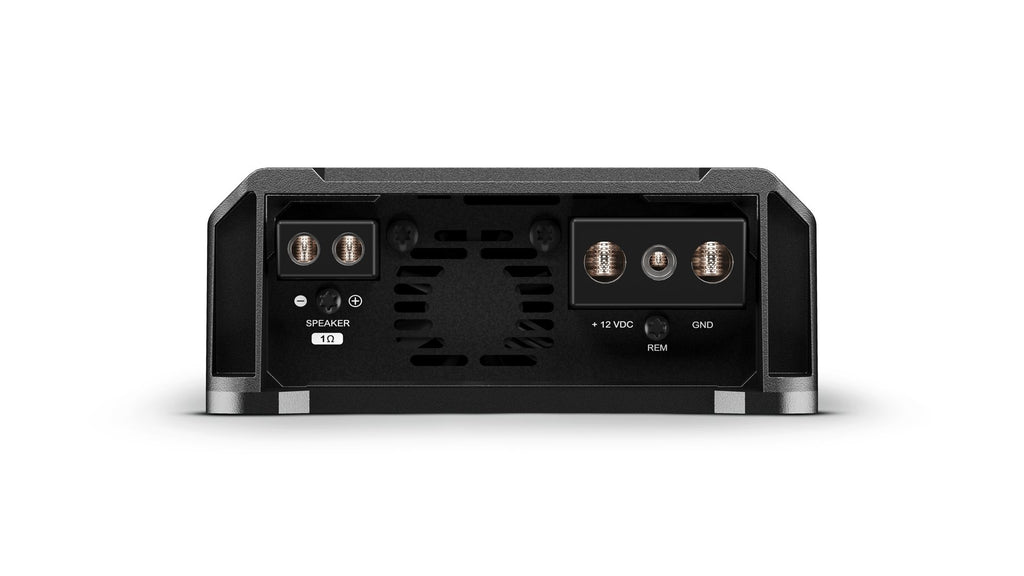

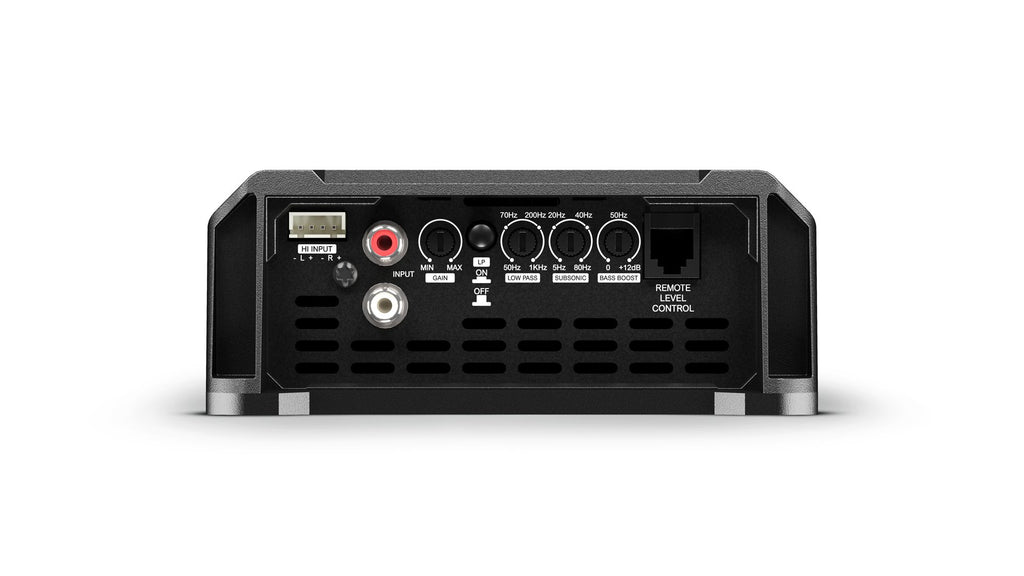

Soundigital SD1600.1 EVO 5 Car Audio Amplifier 1600 Watts RMS

Save $94.00

OHMS: 1 OHMS
$292.00
$198.00

mais formas de pagamento

Mastercard Visa Elo Hypercard American Express Diners Club
Parcelas

  • 1x de $198.00 sem juros
  • 2x de $104.36
  • 3x de $69.94
  • 4x de $53.58
  • 5x de $43.43
  • 6x de $36.64
  • 7x de $31.75
  • 8x de $28.18
  • 9x de $25.40
  • 10x de $23.08
  • 11x de $21.27
  • 12x de $19.77
PayPal

PARCELE SUAS COMPRAS NAS MELHORES BANDEIRAS

Guaranteed Purchase: You have up to 12 months of warranty.

Free Exchange: You have up to 7 days to test the product.

SHARE THIS PRODUCT

Description

The 1600.1 EVO 5 is a compact, modern amplifier that delivers 1600W RMS of power over 1 channel.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

General Specifications

+

  • 1600.1 EVO 5 – 1 OHM

    Power @ 4Ω: 1 X 697 WRMS
    Power @ 2Ω: 1 X 1056 WRMS
    Power @ 1Ω: 1 X 1600 WRMS

  • 1600.1 EVO 5 – 2 OHMS

    Power @ 4Ω: 1 X 1056 WRMS
    Power @ 2Ω: 1 X 1600 WRMS
    Power @ 1Ω: N/A

  • 1600.1 EVO 5 – 4 OHMS

    Power @ 4Ω: 1 X 1600 WRMS
    Power @ 2Ω: N/A
    Power @ 1Ω: N/A

  • Frequency Response (-3dB): 5Hz ~ 25kHz

  • Subsonic Filter: 5Hz ~ 80Hz

  • Low Pass Filter: 50Hz ~ 1kHz

  • Bass Boost: 0dB ~ 12dB @ 50Hz

  • Operating Voltage: 9V ~ 16V

  • Signal-Noise Ratio:

    1Ω: 93.7dB
    2Ω: 95dB
    4Ω: 93.4dB

  • Input Sensitivity: 0.2V ~ 2V

  • Current Draw (Music):

    1Ω: 75A
    2Ω: 71A
    4Ω: 69.4A

  • Current Draw (Max):

    1Ω: 149A
    2Ω: 143A
    4Ω: 138.8A

  • Total Efficiency:

    1Ω: 85%
    2Ω: 89%
    4Ω: 91.5%

  • Damping Factor: >2000

  • Power Cable: 16mm² (5 AWG)

  • Audio Output Cable: 2 x 1.5 mm² (15 AWG)

  • Recommended Fuse (Music): 80A

  • Recommended Battery: 80Ah

  • Width: 13.6 cm / 5.4 in

  • Length: 18 cm / 7.1 in

  • Height: 5.48 cm / 2.1 in

  • Weight: 1.13 Kg
